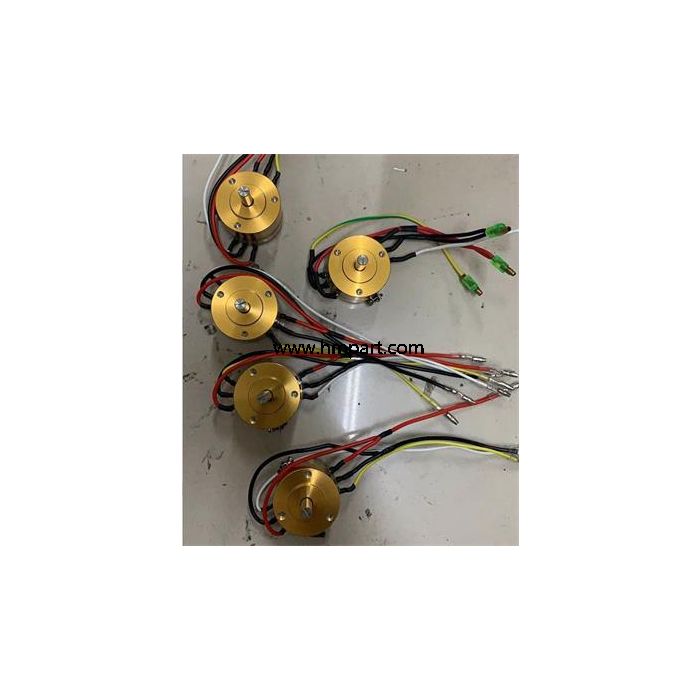

Crane Swing Angle Sensor-Potentiometer

Crane Swing Angle Sensor-Potentiometer.

Diameter: 36.5mm / 45mm
Shaft Diameter: 6mm
Shaft Length: 17.4mm / Other lengh
Total Resistance: 0.5kΩ,1kΩ, 2kΩ, 3kΩ, 5kΩ,10kΩ
Resistance Tolerance: ±15%
Independent Linearity (%): 0.1,0.2,0.3,0.5,1.0
Electrical Travel: 345°±2°
Mechanical Travel: 360° Endless
Power Rating: 2W(70°C) FFOW(125°C)
Temperature Coefficient of Resistance: ≤0.04%/°C
Insulation Resistance: ≥1000M Ω(500VDC)
Dielectric Strength: 500V(AC.RMS)1min
Smoothing of Output: ≤0.05
Working Temperature Range: -55°C+125°C
Stopper Strength: ≤1

Stock available. Please contact us for payment and delivery.
